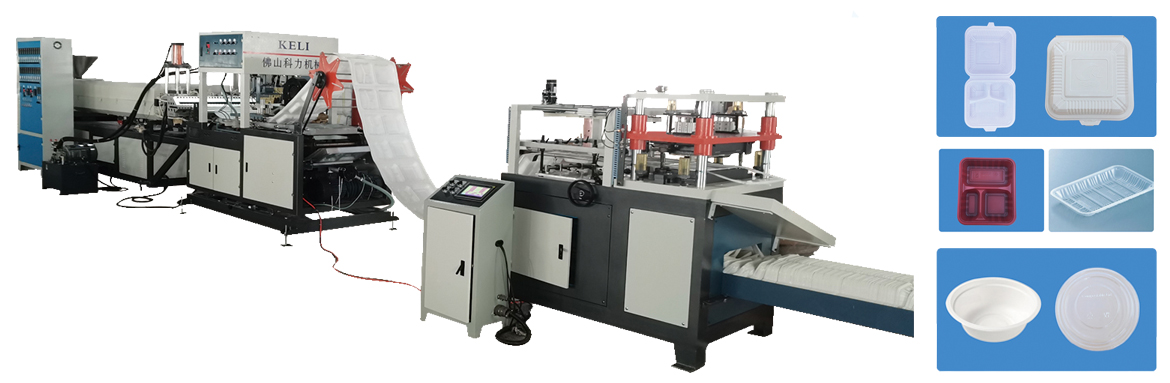

One Step Method Lunch Box Machine

main used to Produce PP/PS/PLA and so on materail 主要用于生产PP/PS及可降解材料(淀粉基,PLA,PBS)等
one step process forming and cutting 一步法成型机结合了片材机与真空高速吸塑机优势于一体
it can cutting by automatic 实现了自动冲切功能, it have achieved from plastic granules to packing the product in one line,save the investment costs of labor,实现了从塑料粒子到产品包装的一步完成,节省人工场地电费投资成本, material are used repeatedly without waste.材料无浪费反复使用 not need heating again,easy to operate,不需要二次加热,操作简单, has hight-speed production,产品生产速度快, high good product yield 良品率高, suit for PP/PS and degradable materials (such as starch-based material,PLA,PBS)and so on.适合生产PP/PS及可降解材料 (淀粉基, PLA. PBS)等, The formula is flexible,the cost is low,and the type of products have a wide range of applications 配方灵活,成本低,产品种类应用广
there are two types forming mathod: Circular forming and skids forming, and they have their own advantages 有两种成型方式:循环成型和滑板成型并各有所长
A.Circular forming has a very fast forming speed, it can achieve automatic punching and cutting, suit for the mass-producing products A.循环模具成型速度块,可以实现自动冲切,适合大批量生产产品
B.skids type mold forms quickly, but can't automatic punching,need to punching and cutting at next process.its advantage is low production cost and easy to change mold,suitable for small batch production B.滑板式模具成型快,但是不能自动冲产品,需要二次冲切后包装其优点是生产成本低 换模具方便快捷,适合小批量生产
acording to the structure features of product,two modes of down punching or up punching can be adopted 根据产品结构特点可采用正冲和反冲两种模式
acording to the product features or customer demands to used automatic punching and then cutting it with manual 根据产品或者客户需求采取自动切片方式再用人工裁切。称为半自动生产
成型速度快,质量稳定
操作比传统机器简单,可选择自动切,或自动冲
双色快餐盒生产调试
三螺杆四层共挤
伺服自动反冲
Notes:hold the table and slide right or left to view more model parameters
DEVICE MODEL | XH90/50 | XH90/65 |
OUTPUT | 150Kg/h | 200Kg/h |
WIDTH | 700mm | 740mm |
THICKNESS | 0.3mm--1mm | 0.2mm-08mm |
CAPACITY | 100KW | 100KW |
SPACE | 10X2(m2) | 10X2(m2) |
WEIGHT | 5T | 5T |
